ES-1A
Radio / Antenna Selector

Switch between 2 radios and 2 antennas

NOTE: Except for the power output rating, ES-1ASP is identical to ES-1A in appearance and specifications

Bitte Achtung!
Customers in Germany: Please contact WiMo Antennen und Eletktronik. They keep stock of ES-1A for immediate delivery.

FRONT PANEL

REAR CONNECTIONS

WHAT'S IN THE BOX

3

ES-1A, User Manual, Power cable

    • Use this device to easily switch the amplifier input between two radios.
    • Switch the amplifier output between two antennas, by front panel switches.
    • Remove the coax cable clutter
    • Use the optional Remote Control to further tidy up your cables: place the Radio / Antenna Selector behind your amplifier and use the remote control, with no need to access the Selector front panel.

Two versions are available: ES-1A (2000 W), ES-1ASP (5000 W).

They have identical marking and specifications except for output power capability, see detailed specifications.

Remote Head (Optional):

ES-1A and ES-1ASP have toggle switches and LED indicators on the front panel.

They can be used without a remote control.

The remote head provides identical switches and indicators in a small enclosure which can be kept near the radio or amplifier, while the main unit is at the back, with all the heavy cables.

About 50% of the customers are getting the remote control together with their ES-1A / ES-1ASP.

It can be ordered at a later time, but there are additional shipping costs.

REMOTE CONTROL

4

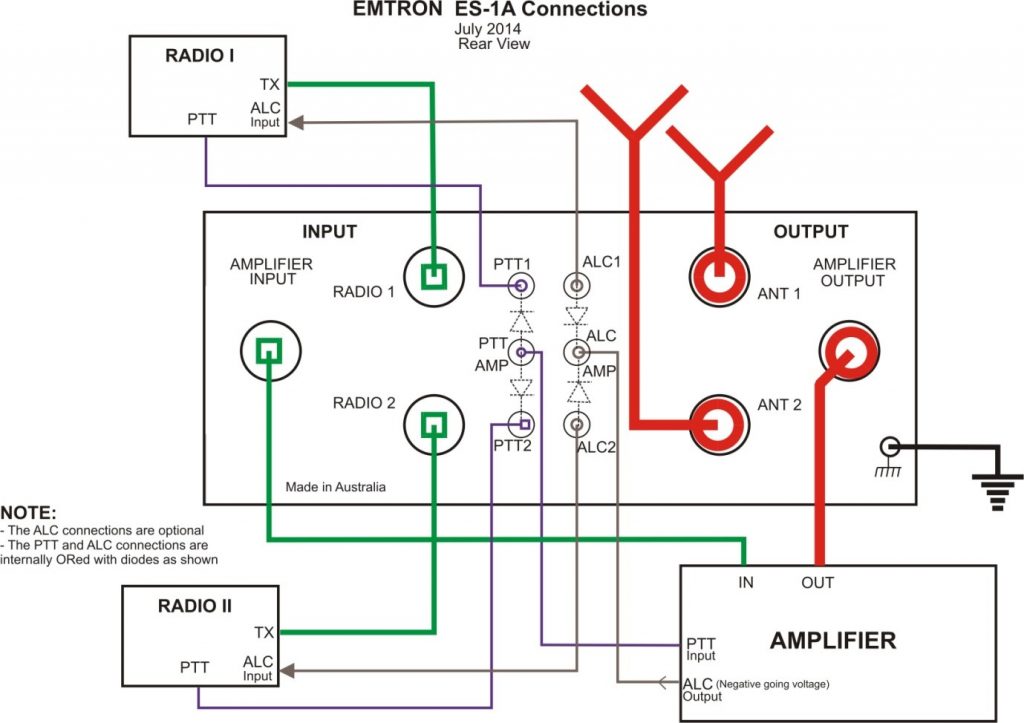

Typical use: ES-1A Wiring

ES-1A SPECIFICATIONS
Input power: 200 W maximum , 50 Ω load, non-switching
Unused input: grounded
Output power: 2000 W continuous, 3000 W peak, 50 Ω load, non-switching
SWR: Better than 1:1.05, 1 MHz to 30 MHz, Input (Radio) and Output (Antenna)
Power requirements: 12 Vdc, 11 to 15 V range, up to 150 mA current
Protection: changing input or output is inhibited when transmitting – PTT is low (<1 V)
PTT1 and PTT2 RCA sockets output a weak voltage of about +3.6 V. When pulled low, the current is <1 mA
Provision for optional ALC connections
Designed and manufactured in Australia

NOTE:

PTT must be connected for this protection to work

The LED’s are following the switch position even with PTT low

(only the relays are inhibited, not the LED’s)

Dimensions: 196 x 140 x 85 mm (approx. 7.7” x 5.5” x 3.3”)
Weight: 0.67 kg (1.5 lb)
Remote head available, connected to the main unit by cable (1 m long, other length – please specify); Remote dimensions: 80 x 54 x 28 mm (approx. 3.2” x 2.1” x 3.3”)

Dimensions:

  •  196 x 140 x 85 mm (approx. 7.7” x 5.5” x 3.3”)

Weight:

  • 0.67 kg (1.5 lb)



  • Remote Head available, connected to the main unit by cable

(1 m long, other length – please specify);

  • Remote dimensions: 80 x 54 x 28 mm (approx. 3.2” x 2.1” x 3.3”)



PRICES (in Australian Dollars):

ES-1A: AU$195

Remote control: AU$28

SHIPPING WORLD WIDE

Shipping weight: 0.95 kg (0.43 lb)

Please inquire for stock and shipping cost or any technical details

(Go to CONTACT US in the Main Menu)

To USA: (US Dollars):

$178 Shipped – ES-1A

$199 Shipped  – ES-1A with Remote
