ES-1ASP
Radio / Antenna Selector

Switch between 2 radios and 2 antennas

NOTE: Except for the power output rating, ES-1ASP is identical to ES-1A in appearance and specifications

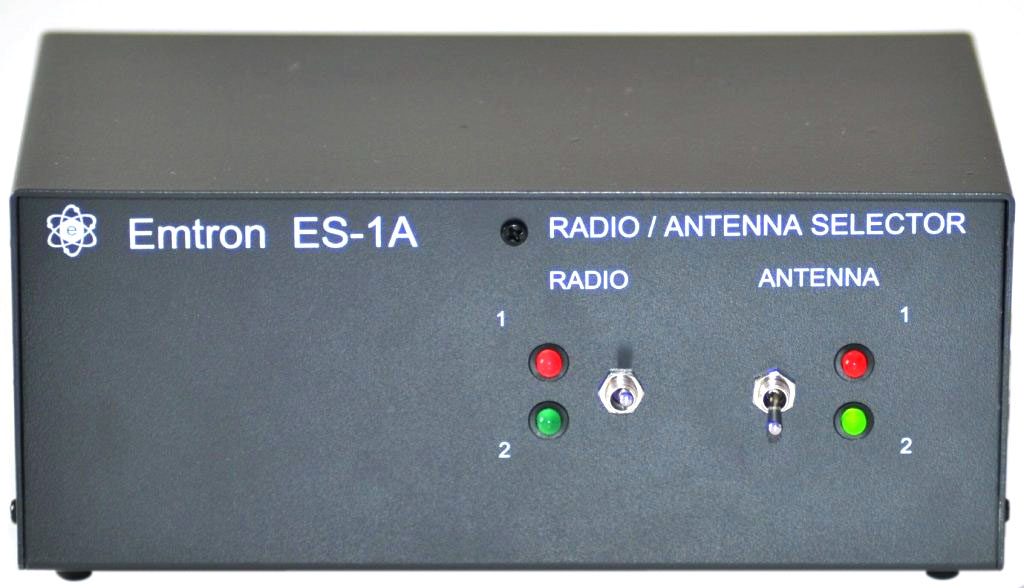

FRONT PANEL

REAR CONNECTIONS

WHAT's IN THE BOX

3

ES-1ASP, User Manual, Power cable



  • Use this device to easily switch the amplifier input between two radios.
  • Switch the amplifier output between two antennas, by front panel switches.
  • Remove the coax cable clutter
  • Use the optional Remote Control to further tidy up your cables: place the Radio / Antenna Selector behind your amplifier and use the remote control, with no need to access the Selector front panel.

ES-1ASP uses a vacuum relay for antenna switching and it can handle 5000 W output power (6000 W peak).

They have identical marking and specifications except for output power capability, see detailed specifications.

The only external difference between ES-1A and ES-1ASP is the product label under the unit, indicating the exact type.

Remote Head (Optional):

ES-1A and ES-1ASP have toggle switches and LED indicators on the front panel.

They can be used without a remote control.

The remote head provides identical switches and indicators in a small enclosure which can be kept near the radio or amplifier, while the main unit is at the back, with all the heavy cables.

About 50% of the customers are getting the remote control together with their ES-1A / ES-1ASP.

It can be ordered at a later time, but there are additional shipping costs.

REMOTE CONTROL

4

Typical use: ES-1ASP Wiring

ES-1ASP Specifications

  • Input power: 200 W maximum , 50 Ω load, non-switching
  • Unused input: grounded
  • Output power: 5000 W continuous, 6000 W peak, 50 Ω load, non-switching
  • SWR: Better than 1:1.05, 1 MHz to 30 MHz, Input (Radio) and Output (Antenna)
  • Power requirements: 12 Vdc, 11 to 15 V range, up to 250 mA current
  • Protection: changing input or output is inhibited when transmitting – PTT is low (<1 V)
  • PTT1 and PTT2 RCA sockets output a weak voltage of about +3.6 V. When pulled low, the current is <1 mA
  • Provision for optional ALC connections
  • Designed and manufactured in Australia

NOTE:

PTT must be connected for this protection to work

The LED’s are following the switch position even with PTT low

(only the relays are inhibited, not the LED’s)

  • Dimensions: 196 x 140 x 85 mm (approx. 7.7” x 5.5” x 3.3”)
  • Weight: 0.67 kg (1.5 lb)
  • Remote head available, connected to the main unit by cable (1 m long, other length – please specify); Remote dimensions: 80 x 54 x 28 mm (approx. 3.2” x 2.1” x 3.3”)
Dimensions:
  • 196 x 140 x 85 mm (approx. 7.7” x 5.5” x 3.3”)
Weight:
  • 0.67 kg (1.5 lb)

PRICES (in Australian Dollars):

ES-1SP: AU$295

Remote control: AU$28

SHIPPING WORLD WIDE

Shipping weight: 0.95 kg (0.43 lb)

 Please inquire for stock and shipping cost or any technical details

(Go to CONTACT US in the Main Menu)

To USA: (US Dollars)

$249 Shipped: ES-1ASP (vacuum relay)

$269 Shipped: ES-1ASP with Remote
